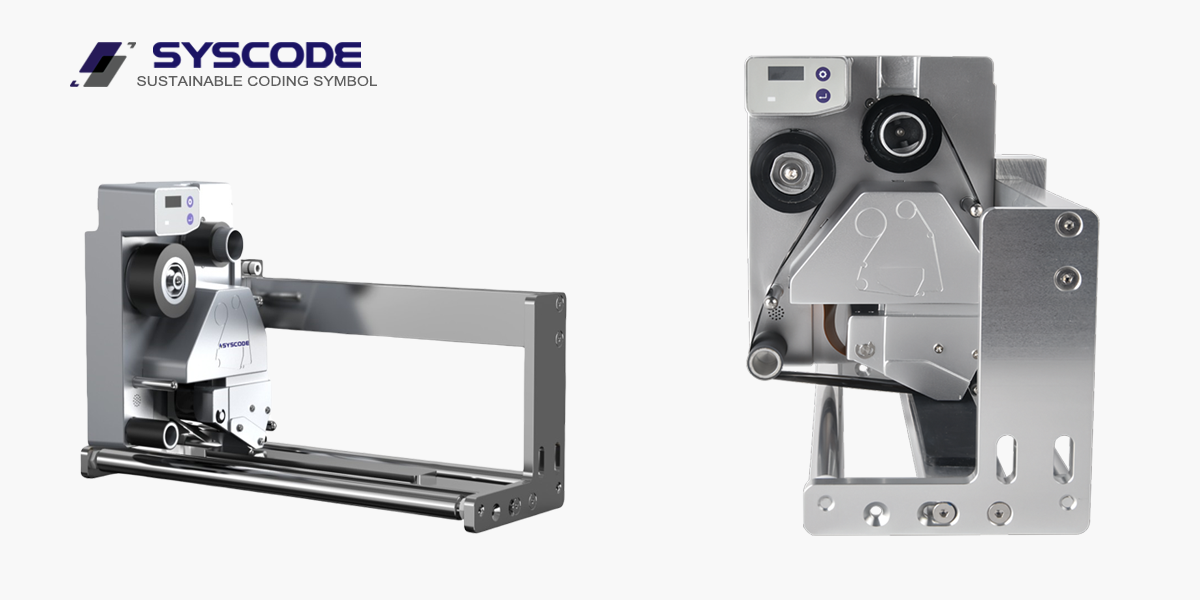

Syscode TTO Coding Machines
Description:
The Syscode TTO coding machines utilize thermal print heads
combined with thermal transfer ribbons, enabling consistent and
reliable marking on flexible films, foils, and labels. The EA24i
and EA24iV models are designed for high-speed printing of exquisite
variable text, serial numbers, barcodes, and graphics, with a
resolution of up to 203 DPI.
What sets the Syscode TTO EA24i and EA24iV apart is their enhanced
design, representing a significant upgrade from traditional thermal
transfer coding machines. This innovation not only conserves ribbon
usage but also improves overall efficiency.
Key Features:
High-speed printing of variable information
Supports barcodes and graphics
Up to 203 DPI resolution
Enhanced design for efficiency and ribbon savings
Application:
* Horizontal Continuous packaging machine
* Vertical Intermittent packaging machine
* Labeling Machine
* Feeder
Technical Details:
| Print area | 24*12mm or 24*15mm |
| Technology | Thermal transfer overprinting |
| Print head | 24mm |
| Resolution | 203dpi (8 dots/mm) |
| Printing speed | 20mm/s-200mm/s |
| Character size | Vector font can be enlarged arbitrarily (can be bold) |
| Character types | Multi-language, numbers, punctuation, etc. |
| Print direction | 0° or 180° |
| Print time | 100ms (minimum stop time of packaging film) |
| Scope of application | Intermittent packaging equipments (such as VFFS, labeling machine,
etc.) |
| Print frequency | 200 packs each min |
| Print Content | Barcode, QR-code, MFG, EXP, Batch number, Real time, Inputted text,
etc. |
| Signal input | Signal: NPN/PNP type (DC12V-24V), switching type sensor |
| Output | No contact signal |
| Ribbon length | 200m |
| Ribbon types | Wax/resin type, resin type |
| Materials | PVDCPET,PE,NY,CPP,OPP,BOPP,BOPET,BOPA,PE,VMPET,VMCPP, etc. |
| Working condition | 5℃- 40℃, 10%-90%, non-condensation |
| IP rate | IP40 |
| Power | Adapter input: AC 100-240V ±10%, 50-60Hz, output maximum current 4A |
| I/O port | Print signal, fault relay, 0V/COM, DC 24V |
Conclusion
Choosing our Industrial Thermal Transfer Printing (TTO) not only
enhances marking quality but also improves production efficiency
and material compatibility. Contact us today for more information
and let us support your business growth!
Our Services
1.Free Pre-Sales Consultation
- Quick Response: We provide pre-sales consultation within 12 hours
to address any technical support needs you may have.
- Solution Design: Tailored advanced solutions for all distributors
and users.
2.Services During Sales
- Quality Assurance: All machines undergo strict quality control
checks and testing before shipment.
- User-Friendly Documentation: Easy-to-understand manuals and
operating guides to ensure smooth usage of the equipment.
3.After-Sales Service
- Free Video Training: Comprehensive free video training to help you
get started quickly.
- Technical Support: Our technicians provide support via English,
video calls, and remote control.
4.Special Design and Customization
- Personalized Service: We are happy to meet your special
requirements through innovative design. Whether you need customized
machines or OEM orders, please feel free to contact us.
With effective thermal transfer coding technology, TTO coders are
widely used in the flexible packaging industry to meet diverse
needs.
Advantages of Syscode Industrial Thermal Transfer Printing (TTO)
Systems
Our Industrial Thermal Transfer Printing (TTO) technology is
designed for precision and durability, making it ideal for
high-volume production environments. It is cost-effective and easy
to integrate into your production line. Syscode's technology
ensures that markings remain clear and legible throughout the
product lifecycle, meeting your traceability and branding needs.
For more information about our Industrial Thermal Transfer Printing
(TTO) coders and how they can enhance your production capabilities,
please contact us.
