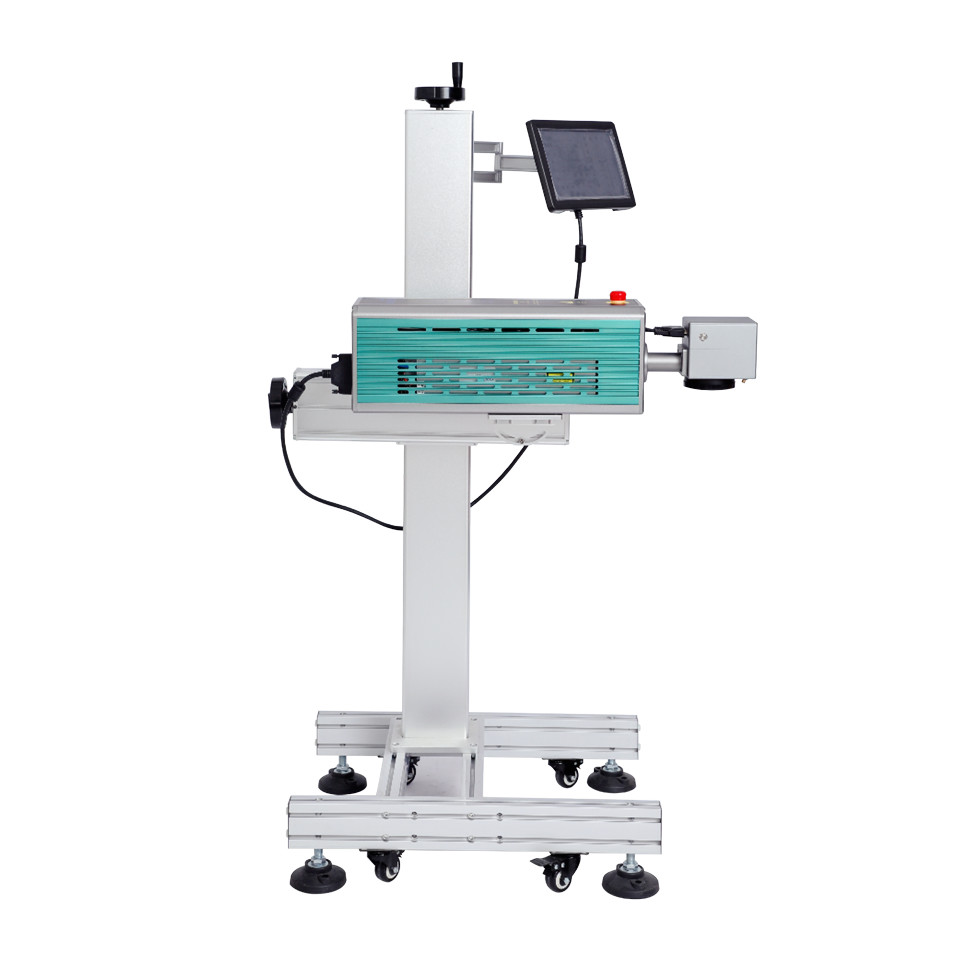

60W CO2 Laser Marking Machine for Expiry Date Printing - Automatic
Online Operation
Product Description
Our 60W Auto Online CO2 Laser Marking Machine is designed for efficient printing of expiration dates and batch
codes. It can produce clear and durable markings on various
materials such as cardboard, plastic, and metal, ensuring your
product information is always readable.
Key Features
- High Power: 60W laser output with a marking speed of up to 1200 characters per second, significantly enhancing production efficiency.
- Automatic Operation: Equipped with an advanced automatic feeding system, suitable for
large-scale production and reducing manual intervention.
- Strong Compatibility: Capable of marking on a variety of materials including cardboard,
plastic, aluminum alloy, and glass, meeting the needs of different
industries.
Applications
- Food and Beverage Industry: Printing expiration dates and batch codes to ensure product
compliance and safety.
- Pharmaceutical Packaging: Marking important information on drug packaging to enhance
product traceability.
- Cosmetic Labels: Printing beautiful and durable labels on various cosmetic
packaging to enhance brand image.
Technical Specifications
- Marking Speed: Up to 1200 characters per second
- Laser Wavelength: 10.6μm
- Markable Area: 110 mm x 110 mm
- Power Requirements: 220V/50Hz
Quality Assurance
Our products undergo strict quality testing and are certified with ISO 9001 and CE, ensuring that each machine you purchase meets global high
standards, providing reliable performance and quality.
Customer Reviews
“This laser machine is extremely efficient, and our production line
speed improved by 20% after using it. Very satisfied!”
— Mr. Zhang, Production Manager, a food company
After-Sales Service
- Free Operation Training: Our professional technical team will provide comprehensive
training for your operators to ensure quick onboarding.
- Technical Support: 24/7 technical support is available to ensure your equipment
operates efficiently at all times.
- Warranty Service: The equipment comes with a two-year warranty, offering free repair services during the warranty period.
Purchase Information
For more information, please feel free to contact us:
Contact us now to get exclusive discounts and detailed quotes! We
look forward to establishing long-term cooperative relationships
and jointly promoting your business development!
SYSCODE C300 Series
Specification parameters:
| Parameter | C340-40 | C360-60 |
| Machine Material | MachineMaterial:SandblastedOxidized Aluminum Structure |
| Laser Source | Laser Source:Sealed Metal RF CO2Laser Generator |
| Laser Wavelength | Laser Wavelength:Standard 10.6um,optional10.2um or9.3um |
| Marking Speed | Marking Speed:≤12000mm/s |
| Main Control | Main Control:10.2-inch Touch Controller |
| Cooling System | Cooling System:Air-cooled for 40/60W. |
| FocusingLens | FocusingLens:Optional,FocalLength 165mm |
| Minimum Line Width | MinimumLine Width:0.03mm |
| Repeat Positioning Accuracy | Repeat PositioningAccuracy:0.01mm |
| Marking Range | Standard 110mm×110mm(Optional) |
| Positioning Method | Red light focusing |
| Number of MarkingRows | Anywithin themarkingrange |
| ProductionLineSpeed | 0~130m/min(Dependent on material) |
| Languages | English,French,Spanish,German,Chinese,Russian,Arabic,etc. |
| User Management | Multiple user management permissions |
| Operating System | Linux |
| Marking Modes | Static,Dynamic,Encoder |
| Reserved Signals | Startprinting,Printing status,Printingcomplete,Faultalarm |
| Data Protection | Power-off data protection function |
| Missed MarkDetection | Providesoverspeed alam function due tomaterial reflectiity |
| CrossPoint Removal | Automatic removal ofcross points to avoid overlapping |
| Printing Software | Supports singleand double machine coding |
| Fonts | Standard fonts in Chinese,English,numbers,traditional
characters,etc. |
| File Formats | BMP/DXF/HPGL/JPEG/PLT |
| Barcodes | CODE39,CODE128,CODE126,QRCode,Datamatrix(optional) |
| Power Supply | 220V/50HZ |
| Maximum Power Consumption | 400W |
| Machine Net Weight | Laser machinepart:40W-16kg,60W-18kg:Flyingbracket part:22kg |
| Dimensions | 40W-750X180X195mm,60W-815X180X195mm |
| Environmental Requirements | Extemal temperature0℃-45℃;Humidity≤95%;Non-condensing:Novibration. |
* The quantity of characters printed each second and production
line speed depends on the surface material and marking content.
Printing Performance
The quantity of characters printed per second and the production
line speed depend on the surface material and marking content.
CO2 Laser Technology
CO2 lasers are a type of gas laser that produces a wavelength of
10.6 μm, which falls within the mid-infrared region. These lasers
have high power and high electro-optical conversion efficiency,
using CO2 gas as the working substance. By filling the discharge
tube with CO2 and other auxiliary gases and applying a high
voltage, a glow discharge is generated, exciting the gas molecules
to emit laser light. After amplification, the released laser energy
can be used for laser processing.
Applications
- Pharmaceutical packaging
- Printing plates
- Food and beverage packaging
- Fabric cutting
- Craft gifts
- Electronic components
- Rubber products
- Leather clothing accessories
- Nameplates
- Glass, wooden products, and bamboo products
Advantages
- Versatile Coding Solutions: High performance and flexible applications.
- Optimized Control Software: Automatically calculates the most efficient marking methods for
faster marking speeds.
- User-Friendly: Industrial laser markers can apply clean, clear codes on
products.
Benefits of CO2 Lasers
- Permanence: Tamper-proof laser marks are effective throughout the product's
lifecycle.
- High Quality: CO2 lasers provide unique marks that enhance brand perception.
- Low Carbon Footprint: Limited consumables contribute to sustainability.
Wavelength Options
CO2 lasers offer three different wavelengths to cover a wide range
of substrates:
- 10.6 μm: Ideal for most consumer product packaging.
- 10.2 μm: Best suited for laminated cartons commonly used in cosmetics and
pharmaceuticals.
- 9.3 μm: Specifically designed for marking PET plastic, typical in
beverage products.
Maintenance and Costs
- Minimal Consumables: Significantly reduces the cost and hassle of inks and other
fluids.
- Low Maintenance: CO2 lasers require virtually no maintenance, enhancing ease of
operation.
Our Services
- Free Pre-Sales Consultation: 12-hour rapid response, with technical consulting services
available.
- Sales Services: All machines are thoroughly inspected by qualified QC staff
before shipment.
- After-Sales Support: Free video training and technical support via email and online
video.
- Customized Design and OEM Orders: We welcome inquiries for special features or custom machines.
Based on our high-quality products and excellent customer service,
we have established stable, long-term partnerships with
distributors in various regions, with products sold in over 100
countries worldwide.
If you are interested in any of our products or would like to place
an order, please feel free to contact us. We look forward to
building successful business relationships with new customers and
providing competitive prices, high quality, and timely support.
